Lightweight SMD Chip Resistor / Small Chip Resistor With Power Rating Dimension

  • 1
  • 2
  • 3

Brand Name : ANYO

Model Number : 0402, 0603, 0805, 1206, 1210, 2010, 2512

Place of Origin : CHINA

MOQ : 10000pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100000PCS per day

Delivery Time : 8-10 work days

Packaging Details : Customized carton

Other name : 0603 chip resistor

Packaging : Tape & Reel packaging

Size : 0402, 0603, 0805, 1206, 1210, 2010, 2512

Operating temperature range : -55℃~ +155℃

Solderability : Min. 95% coverage

Insulation resistance : ≥1000MΩ

Contact Now

Power rating dimension SMD resistors, new brand VO chip resistors

Description:

SMD stands for Surface Mounted Device. An SMD is any electronic component that is made to use with SMT, or Surface Mount Technology. SMT was developed to meet the ongoing desire for printed circuit board manufacture to use smaller.

Features:

• Small size and lightweight
• Suitable for both flow and reflow soldering
• Reduction of assembly costs and matching with placement machines.

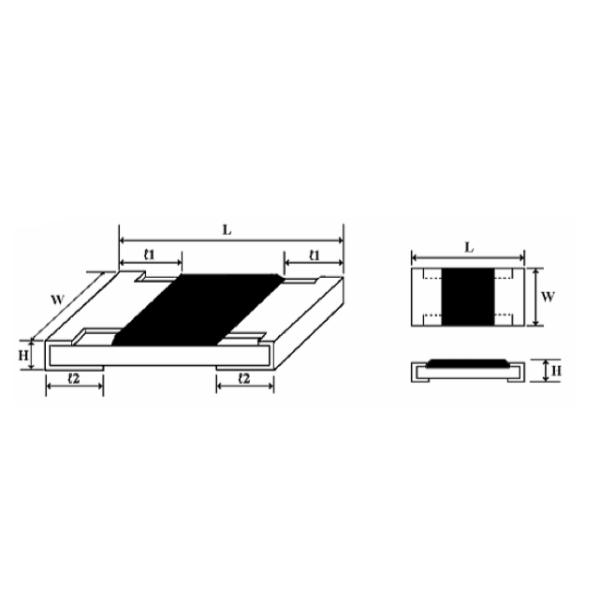

Construction:

Lightweight SMD Chip Resistor / Small Chip Resistor With Power Rating Dimension

Power rating & Dimension:

Lightweight SMD Chip Resistor / Small Chip Resistor With Power Rating Dimension

Type Power
rating at 70℃		 Max.
working voltage		 Max.
overload voltage		 Operating
temp.(℃)		 Tolerance
%		 Resistance
range		 Standard
series		 Dimension (mm)
L W H l1 l2
0402 1/16W 1A 2A -55~+155 Jumper <50mΩ

E-96

E-24

E-24

 1.00±0.10 0.50±0.05 0.35±0.05 0.20±0.10 0.25±0.10
50V 100V

±1

±2

±5

10Ω-1MΩ

1Ω-10MΩ

1Ω-10MΩ
0603 1/10W-S
1/16W		 1A 2A -55~+155 Jumper <50mΩ

E-96

E-24

E-24

 1.60±0.10

+0.15

0.80

-0.10

 0.45±0.10 0.30±0.20 0.30±0.20
50V 100V

±1

±2

±5

10Ω-1MΩ

1Ω-10MΩ

1Ω-10MΩ
0805

1/8W-S

1/10W

 2A 4A -55~+155 Jumper <50mΩ

E-96

E-24

E-24

 2.00±0.15

+0.15

1.25

-0.10

 0.55±0.10 0.40±0.20 0.40±0.20
150V 300V

±1

±2

±5

10Ω-1MΩ

1Ω-10MΩ

1Ω-10MΩ
1206

1/4W-S

1/8W

 2A 4A -55~+155 Jumper <50mΩ

E-96

E-24

E-24

 3.10±0.15

+0.15

1.55

-0.10

 0.55±0.10 0.45±0.20 0.45±0.20
200V 400V

±1

±2

±5

10Ω-1MΩ

1Ω-10MΩ

1Ω-10MΩ
1210

1/3W-S

1/4W

 2A

4A

 -55~+155 Jumper <50mΩ

E-96

E-24

E-24

 3.10±0.10 2.60±0.15 0.55±0.10 0.50±0.25 0.50±0.20
200V 400V

±1

±2

±5

10Ω-1MΩ

1Ω-10MΩ

1Ω-10MΩ
2010

3/4W-S

1/2W

 2A 4A -55~+155 Jumper <50mΩ

E-96

E-24

E-24

 5.00±0.10 2.50±0.15 0.55±0.10 0.60±0.25 0.50±0.20
200V 400V

±1

±2

±5

10Ω-1MΩ

1Ω-10MΩ

1Ω-10MΩ
2512 1W 2.5A 5A -55~+155 Jumper <50mΩ

E-96

E-24

E-24

 6.35±0.10 3.20±0.15 0.55±0.10 0.60±0.25 0.50±0.20
200V 400V

±1

±2

±5

10Ω-1MΩ

1Ω-10MΩ

1Ω-10MΩ
